ASTM 2205 Bright Stainless Steel Bar For Food Processing Equipment

Ask Lasest Price
Brand Name :	UST
Model Number :	ASTM 2205
Certification :	ISO 9001:2008
Price :	USD 2900-4000 / Metric Ton
Payment Terms :	L/C, T/T, D/A, D/P
Supply Ability :	1000 Metric Tons per Month
Delivery Time :	15-35 days

Add to Cart

Product Details
Company Profile

ASTM 2205 Bright Stainless Steel Bar For Food Processing Equipment

INTRODUCTION

Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It also demonstrates good fatigue strength, as well as outstanding resistance to stress corrosion cracking, crevice, pitting, erosion, and general corrosion in severe environments.

APPLICATIONS

Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
Marine and other high chloride environments
Effluent scrubbing systems
Pulp and paper industry – digesters, bleaching equipment, and stock-handling systems
Cargo tanks for ships and trucks
Food processing equipment
Biofuels plants

Steel Grade	2205	Application	Mentioned above

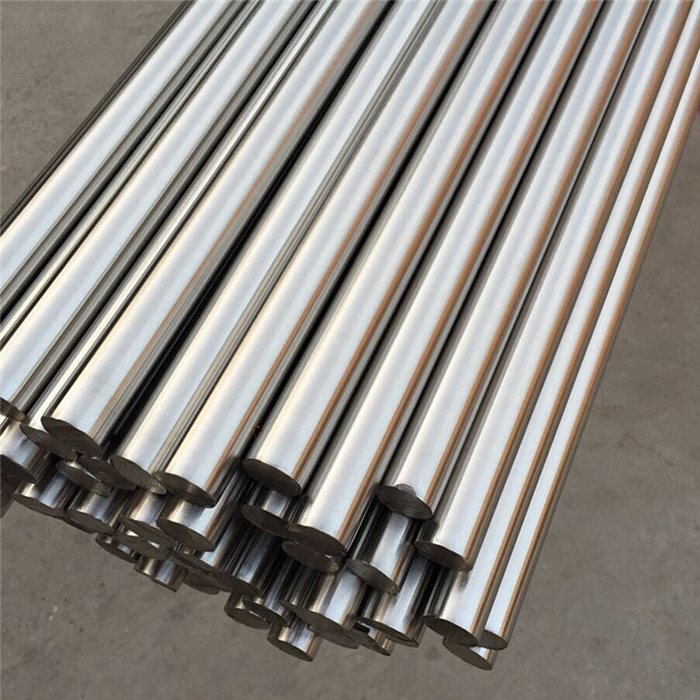

Shape	Round Bar	Standard	GB, ASTM, DIN,JIS
Dimension	Φ4-800 mm; length below 10m	Surface	Black, Bright, Polished, Peeled
Technique	Cold drawn; Hot rolled; Forged	Ultrasonic Test	100% UT Passed

DELIVERY CONDITIONS

	Diameter (mm)
Cold drawn	4-60
Peeled	30-100
Grinded	4-600
Turned	130-800
Hot Rolled	20-280
Hot Forged	130-800

EQUIVALENT GRADES

ASTM/ASME: UNS S32205
EURONORM: X2CrNiMoN22-5-3
DIN: 1.4462

CHEMICAL COMPOSITION (%)

The chemical compositions of the various types of 2205 stainless steel are as follows

2205

S31803

≤

0.03

≤

1.00

≤

2.00

≤

0.030

≤

0.020

21.00

23.00

2.5

3.5

4.50

6.50

0.08

0.20

2205

S32205

≤

0.03

≤

1.00

≤

2.00

≤

0.030

≤

0.020

22.00

23.00

3.0

3.5

4.50

6.50

0.14

0.20

MECHANICAL PROPERTIES

Grade	Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (Brinell) MAX
2205	90	65	25	217

CORROSION

Corrosion Resistance:

Due to its high chromium, molybdenum, and nitrogen content, Duplex 2205 demonstrates superior corrosion resistant properties to 316 and 316L in most environments
Chromium, molybdenum, and nitrogen content also provide high resistance to pitting and crevice corrosion, even in oxidizing and acidic solutions
Resistant to chloride stress corrosion cracking and temperatures of up to about 302°F (150°C)
The presence of ferrite provides for good performance of Duplex 2205 in caustic environments

Heat Resistance:

Similar to other duplex stainless steels, Duplex 2205 has good oxidation resistance at high temperatures
Subject to embrittlement when exposed to temperatures above 572°F (300°C) even when exposed for short periods of time; Duplex 2205 is therefore not recommended for use above 572°F (300°C)

PROCESSING

Welding Characteristics:

Possesses good weldability
Should not generally be welded without filler metal as this may result in excessive ferrite

Heat Treatment:

Annealing temperature range is 1868 to 2012°F (1020 to 1100°C)
Cannot be hardened by heat treatment – but Duplex 2205 does work-harden
Special consideration is needed to compensate for a higher coefficient of thermal expansion to avoid warping and distortion

Processing – Hot Forming:

Most Duplex 2205 producers recommend a maximum hot forming temperature between 2010 and 2100°F (1100 to 1150°C). If the shape of the work piece is not compact, the edges may be significantly cooler than the bulk, and there is risk of cracking in the cooler regions.

Processing – Cold Forming:

Duplex 2205 has shown good formability in a variety of fabrications. The high strength of Duplex 2205 can pose problems. Even when the equipment has sufficient power, allowance must be made for higher spring-back caused by the grade’s high strength.

Machinability:

Duplex 2205 is somewhat more difficult to machine than the 300 series austenitic stainless steels. Higher cutting forces are required and more rapid tool wear is typical. Some guidelines for machining are: A) Use powerful, rigid machines with extremely strong rigid mounting of tools and work piece, B) Minimize vibration by keeping the tool extension as short as possible, C) Use a nose radius on the tool, no longer than necessary, for carbides that have a sharp edge while still providing adequate strength, D) Design machining sequences to always provide for a depth of cut below the work hardened layer resulting from the previous passes.

What we can offer?

-We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.

-Machining and heat treatment are available.

-Also, we advise you in choosing the right materials.

Shape Available

Solid round bar
Flat bar
Square bar
Hexagon bar
Block
Plate
Sheet
Wire rod
Strip

Our Advantages

High mechanical property and quenching, enable the surface share equal hardness after deal with it
Good polishing and low roughness
Making the heat-treatment to harden condition before using it
Competitive price
Fast production lead-time
All the material are inspected with 3 times to meet the highly standards
Pure steel quality & stable quality to be guarantee

OUR AVAILABLE STAINLESS STEEL PRODUCTS ARE AS BELOW

PAYMENT AND SHIPPING

1. Both T/T and L/C will be acceptable

2. Trade Terms: FOB, CIF, CFR

3. The delivery will be in 10-15 days if have stock; For customized items, the delivery will be negotiated by both parties

4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples

COMPANY INFORMATION

Shanghai Unite Steel Trading Co., Ltd

We are committed to integrate engineering steel resources in china and serve the global engineering steel market. Our company has more than 15 years of experience in steel researching, production, managing and sales. And our team mostly are based on and worked in national famous steel enterprise.

In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in china.

What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want!

FAQ

Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.

Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.

Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material doesn't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.

Q: What is the payment term?
A: T/T or L/C.

Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
