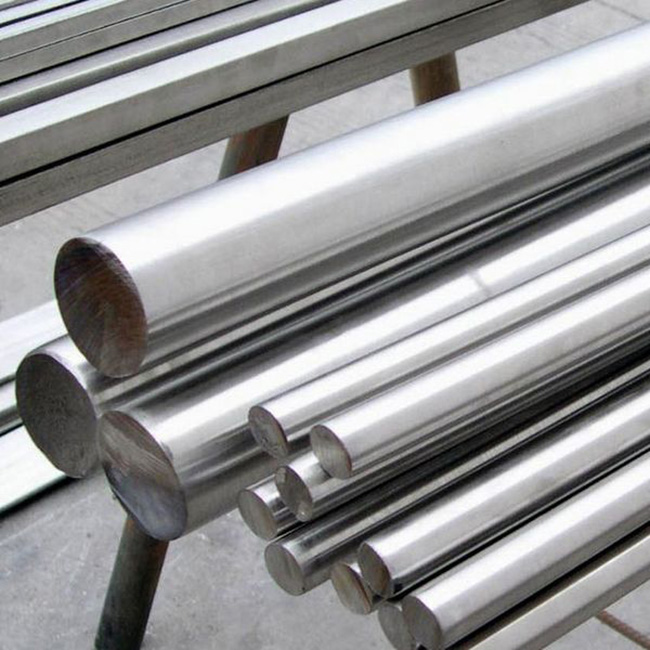

High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm

    Buy cheap High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm from wholesalers

    Buy cheap High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm from wholesalers
    • Buy cheap High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm from wholesalers
    • Buy cheap High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm from wholesalers

    High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm

    Ask Lasest Price
    Brand Name : UST
    Model Number : ASTM 330
    Certification : ISO 9001:2008
    Price : USD 1250-3500 / Metric Ton
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 1000 Metric Tons per Month
    Delivery Time : 15-35 days
    • Product Details
    • Company Profile

    High Temp ASTM 330 Stainless Steel Solid Bar 300 Series Diameter 4-800 mm

    INTRODUCTION


    Alloy 330 is an austenitic, nickel-chromium-iron-silicon alloy that has outstanding resistance to oxidation and carburization up to 2200°F with high strength. The excellent resistance to oxidation and carburization is provided by the high nickel and chromium content of the alloy, further enhanced by its silicon content. Alloy 330’s ultra high nickel content of 34 to 37% also provides high resistance to chloride stress corrosion cracking and embrittlement from the precipitation of sigma phase in most furnace atmospheres. Alloy 330 also has a low coefficient of expansion, excellent ductility, and high strength.


    COMMON APPLICATIONS


    • Alloy 330 is extensively used in high temperature environments where resistance to the combined effects of thermal cycling and carburization is necessary. Applications include:
    • Chemical and Petrochemical Processing: cracked ammonia components, petrochemical furnace parts, heat exchangers, flares, etc
    • Thermal Processing: heat-treat furnace containers & compartments, high temperature fans, salt pots, etc
    • Ore Processing: perlite system and equipment
    • Power Generation: boiler fixtures, gas turbine components, etc

    Steel Grade330ApplicationWidely used in high temperature environment
    ShapeRound BarStandardGB, ASTM, DIN,JIS
    DimensionΦ4-800 mm; length below 10mSurfaceBlack, Bright, Polished, Peeled
    TechniqueCold drawn; Hot rolled; ForgedUltrasonic Test100% UT Passed

    DELIVERY CONDITIONS


    Diameter (mm)
    Cold drawn4-60
    Peeled30-100
    Grinded4-600
    Turned130-800
    Hot Rolled20-280
    Hot Forged130-800

    EQUIVALENT GRADES OF ASTM 330

    • JIS G4311: SUH330
    • EURONORM: 1.4864
    • DIN: X12CrNiSi35-16

    CHEMICAL COMPOSITION (%)


    CSiMnPSCrNiCo
    330

    0.08

    1.00

    1.50

    2.00

    0.030

    0.030

    18.00

    22.00

    34.00

    37.00

    0.75


    MECHANICAL PROPERTIES

    GradeTensile Strength ksi (min)Yield Strength 0.2% ksi (min)Elongation %Hardness (Brinell) MAXHardness (Rockwell B) MAX
    33070303021790

    RESISTANCE

    Corrosion Resistance:

    • Provides high level of corrosion resistance especially with regards to oxidation, carburization, and nitridation
    • Has great oxidation resistance and resists scale formation up to about 2000°F due to its chromium and nickel content
    • Excellent resistance to carburization due to its 34 to 37% nickel and silicon content
    • Exhibits resistance to nitrogen containing atmospheres where the oxygen content is low
    • High nickel content also makes it highly resistant to chloride stress corrosion cracking and sigma phase embrittlement

    PROCESSING


    Hardening:

    Alloy 330 will not respond to heat treatment; will only harden upon cold work

    Machinability

    Rigid mounts, sulfurized lubricants, positive feeds and slow speeds are recommended for machining grade 330 stainless steel.

    Welding

    Grade 330 stainless steel can be welded using GAW techniques.

    Hot Working

    Hot working of grade 330 stainless steel can be performed at 1149 to 1177°C (2100 to 2150°F).

    Cold Working

    It is difficult to perform cold working in grade 330 stainless steel as the steel has high strength and work hardening rate. However, this steel can be cold worked using strong forces.

    Annealing

    Grade 330 stainless steel can be annealed at 1121 to 1204°C (2050 to 2200°F).


    What we can offer?

    -We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.

    -Machining and heat treatment are available.

    -Also, we advise you in choosing the right materials.


    Shape Available

    • Solid round bar
    • Flat bar
    • Square bar
    • Hexagon bar
    • Block
    • Plate
    • Sheet
    • Wire rod
    • Strip

    Our Advantages

    • High mechanical property and quenching, enable the surface share equal hardness after deal with it
    • Good polishing and low roughness
    • Making the heat-treatment to harden condition before using it
    • Competitive price
    • Fast production lead-time
    • All the material are inspected with 3 times to meet the highly standards
    • Pure steel quality & stable quality to be guarantee

    OUR AVAILABLE STAINLESS STEEL PRODUCTS ARE AS BELOW


    PAYMENT AND SHIPPING


    1. Both T/T and L/C will be acceptable

    2. Trade Terms: FOB, CIF, CFR

    3. The delivery will be in 10-15 days if have stock; For customized items, the delivery will be negotiated by both parties

    4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples
