AISI P20+Ni / DIN EN 40CrMnNiMo8-6-4 1.2738 Plastic Mold Tool Steel
Bar / Rod
INTRODUCTION
P20+Ni is specially used for Plastic injection die moulds. The
characteristics of a material are right sharpening, photo-etching
properties with high purity and good homogeneity. P20+Ni is
upgraded version of plastic mold steel 0f 2311, which normally
supply in Pre hardened condition. Hardness in as supplied condition
280-320 HB with having uniform hardness. The additional nickel
content of 1 % increases through hardening. It has good
machinability, suitable for Texturing, fine polishability, adequate
corrosion resistance, vacuum-degassed steel.
P20+Ni High Hard ( HXM 24 )
P20+Ni is with High Hardness 360-400 BHN and increase alloy
elements to get extra life and outstanding polishing.

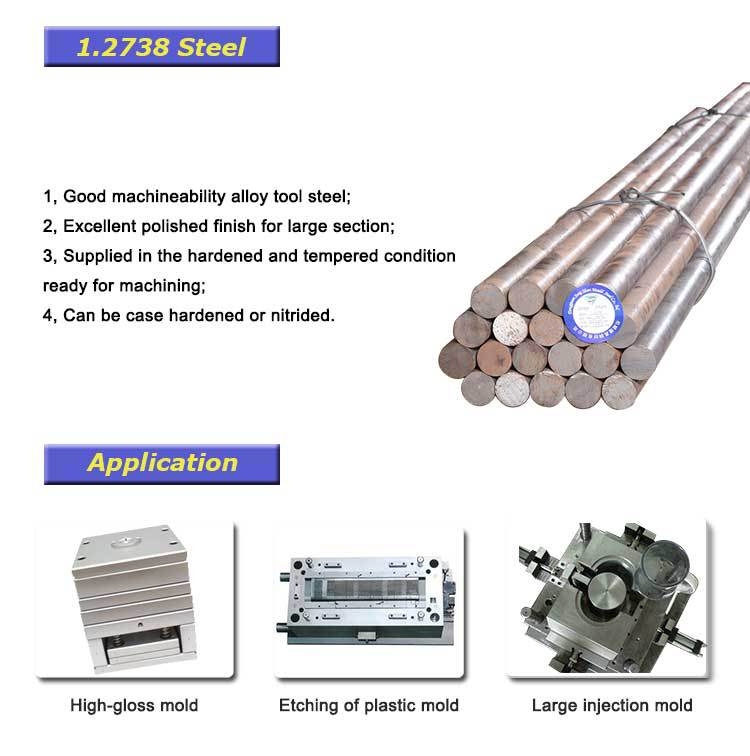

APPLICATIONS
P20+Ni is equivalent grade of most popular steel grade of DIN 2738
which is applicable for large & small plastic mould dies for
Automotive Industries, Dies for Domestic goods , High finishing
plastic Die, Boaster Plates of Presses, Die Holders & Shoe blocks
for drop Hammers, Press Cassettes , Upsetter Blocker, forging dies,
Different dies & mold for plastic products etc.
| Steel Grade | 1.2738 | Application | Tool steel, Mold Steel |
| Shape | Round Bar | Standard | GB, ASTM, DIN,JIS |
| Dimension | Φ20-1000 mm; length below 16m | Surface | Black, Bright, Polished, Peeled |
| Technique | Cold drawn; Hot rolled; Forged | Ultrasonic Test | 100% UT Passed |
DELIVERY CONDITIONS
| Diameter (mm) |
| Cold drawn | 10-100 |
| Peeled | 30-160 |
| Grinded | 10-600 |
| Turned | 130-1600 |
| Hot Rolled | 20-280 |
| Hot Forged | 130-1000 |
-EAF+(ESR) or EAF+LF+VD+(ESR)
-HOT rolled; Cold rolled; Forged; Cold Drawn
-Heat Treatment: Untreated, Annealing, N+T, Q+T
-Smelting: EAF+LF+VD (+ESR)
-Surface Finish: Black, Rough Machined, Peeled, Turned or as per given
requirements
-UT 100% passed
-Cutting service provided
-Third Party inspection is acceptable (SGS, BV etc.)
EQUIVALENT GRADES
| AISI/SAE | DIN | EN ISO | GB |
| P20+Ni | 1.2738 | 40CrMnNiMo8-6-4 | 3Cr2NiMo |
CHEMICAL COMPOSITION (%)
| C | Si | Mn | P | S | Cr | Mo |
0.35 0.45 | 0.20 0.40 | 1.30 1.60 | ≤ 0.030 | ≤ 0.030 | 1.80 2.10 | 0.15 0.35 |
Mechanical Properties
P20 +Ni is upgrade version of plastic mold steel 0f 12311, which
normally supply in Pre hardened condition. Hardness in as supplied
condition 280-320 HB. The additional nickel content of 1 %
increases through hardening. It is micro-alloyed. It has good
machinability, suitable for texturing, outstanding polishability,
adequate corrosion resistance. vacuum-degassed steel with the
following excellent features.
PROCESSING
Forging Technique:
| Heating temperature | Initial forging temperature | Final forging temperature | Cooling |
|---|
| 1140-1180 | 1050-1140 | ≥850 | cooling in pit |
Heat treatment technique:
| Item | Annealing | Quenching | Tempering |
|---|
| Temperature [°C] | 710-740 | 840-870 | 550-650 |
| Cooling | Furnace cooling | Oil cooling or air cooling | air cooling |
| Hardness | ≤235HB | ≤51HRC | 28-35HRC |
What we can offer?
-We offer a wide range of steel products in a wide variety of
dimensions and executions, according to the common international
specifications or customize.
-Machining and heat treatment are available.
-Also, we advise you in choosing the right materials.
Shape Available
- Solid round bar
- Flat bar
- Square bar
- Hexagon bar
- Block
- Plate
- Sheet
- Wire rod
- Strip
Our Advantages
- High mechanical property and quenching, enable the surface share
equal hardness after deal with it
- Good polishing and low roughness
- Making the heat-treatment to harden condition before using it
- Competitive price
- Fast production lead-time
- All the material are inspected with 3 times to meet the highly
standards
- Pure steel quality & stable quality to be guarantee
OUR MAIN PRODUCTS ARE LISTED AS BELOW
Notes:
Available Size:
-Round: Dia. 20-1000 mm
-Flat: T. 10-120 mm x W. 60-810 mm
-Block: T. 80-1200 mm x W. 100-1600 mm
PAYMENT AND SHIPPING
1. Both T/T and L/C will be acceptable
2. Trade Terms: FOB, CIF, CFR
3. The delivery will be in 10-15 days if have stock; For customized
items, the delivery will be negotiated by both parties
4. Shipping by sea freight from Shanghai Port (PRC) for Bulk
orders, by airfreight or express for samples
