1045/S45C/S45K cold drawn bar, cold finished bar for mechnical
purpose, Dia: 2-100mm
Application
Cold Drawn steel round bar are widely used in machinery making,
autombile making, railway, mine machinery, petoleum machinry,
agricultural machinery and civil archtectue such as all kinds of
shafts, screws, connecting rods, hardware tools, gears, standard
parts, spanners fasteners, structural parts for automobile and
agricultural machinery, outer and iner sleeves, rollers and balls
for bearing making.
Related specification:
European: C40, C45, Ck40,Ck45, Cm40, Cm45,
Germany DIN 1.1191 DIN1.1201
Great Britain: BS970: 1955 EN8,
BS970/PD970: 1970 onwards 080M40, 080M46, 060A47
USA: ASTM A29 , ASTM A510 , ASTM A519 ,
SAE J403 , SAE J412 , SAE J414 , UNS G10450
SAE: 1045, 1049, 1039, 1040, 1042, 1043, 1045.
Japan: JIS S 45C , JIS S 48 C
Chemical composition:
| Grade | C | Si | Mn | P | S | B |
| 45# | 0.42 0.50 | 0.17 0.37 | 0.50 0.80 | Max 0.035 | Max 0.035 | |
| 45B | 0.42 0.49 | 0.17 0.37 | 0.60 0.90 | Max 0.035 | Max 0.035 | 0.0005 0.0035 |
| S45C | 0.42 0.48 | 0.15 0.35 | 0.60 0.90 | Max 0.030 | Max 0.035 | |
| 1045 | 0.43 0.50 | 0.15 0.35 | 0.60 0.90 | Max 0.030 | Max 0.050 | |
Size range:
Dia: 2-100mm
Length Random Length, Fixed Length, etc.
The tolerance:
Black, Peeled K12, Cold Drawn, Turned & Polished H10, H11,
Precision Ground H9, H8
Certificate of Quality: issued in English, in addition the normal terms, production
process, the mechanical property yield strength, tensile strength,
elongation and hardness, forged ratio, UT test result, Grain size,
heat treatment methods and the sample of is shown on the
Certificate of Quality.

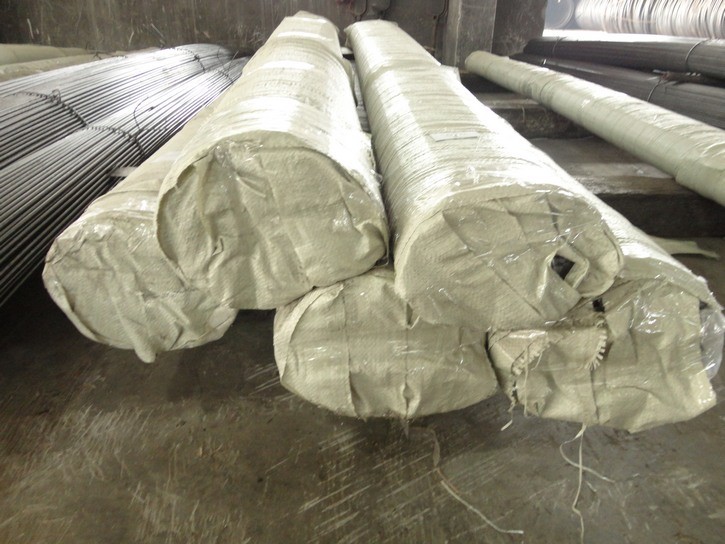

Packing: Plastic reel shaft, and bound, iron wire frame, the paper barrel
etc
