16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm

    Buy cheap 16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm from wholesalers

    Buy cheap 16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm from wholesalers
    • Buy cheap 16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm from wholesalers

    16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm

    Ask Lasest Price
    Brand Name : ust
    Model Number : 80-850mm
    Certification : iso
    Price : 800-1000usd per ton
    Supply Ability : 1000 per month
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm

    16mncr5 Hot Forged Alloy Steel Round Bar with competitive prices


    Product Description


    1. Steel Grade:16mncr5+Fp
    2. Product name: Hot Forged Bar, Alloy Steel Round Bar 16mncr5+Fp/16mncrs5+Fp
    3. Length: 1000mm-12000mm
    4. Diameter: 4mm~600mm

    Chemical composition:

    CSiMnPSCrNiMoCuVAl

    0.15/0.19

    0.15/0.35

    1.0/1.3

    <=0.025

    <=0.03

    0.85/1.1

    <=0.25

    <=0.1

    <=0.25

    <=0.05

    0.02/0.05

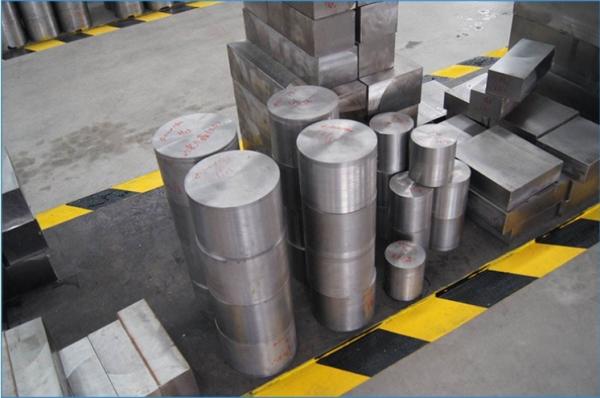

    Material:16MnCr5 forged steel round bar Or square bar
    Process:Forged from vacuum degassed ingots.
    Diameter:4mm-600mm (optional)
    Length:1000mm-12000mm Straightness: 3mm/M max(optional)
    Process:EAF + LF + VD + Forged + Heat Treatment (optional)
    Delivery condition:Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
    Delivery Time:7 days
    MOQ:20 tons
    Heat treatment:Normalized / Annealed / Quenched / tempered (optional)
    Technical Data:According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
    Properties:As your request
    Test:Ultrasonic test according to SEP 1921-84 Class C/c and D/d (optional)
    Marking:Grade, heat NO. length will be stamped one each bar with required color
    Payment:30% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight
    similar steel grade20MnCR5
    Application:

    Statically and dynamically stressed components for vehicles, engines and machines. For parts of larger cross-sections, crankshafts, gears.


    Below inspection will be done in the production.

    (1) ray detection---RT;

    (2) ultrasonic testing---UT;

    (3) Magnetic Particle Testing-MT;

    (4) penetration testing-PT;

    (5) eddy current flaw detection-ET
