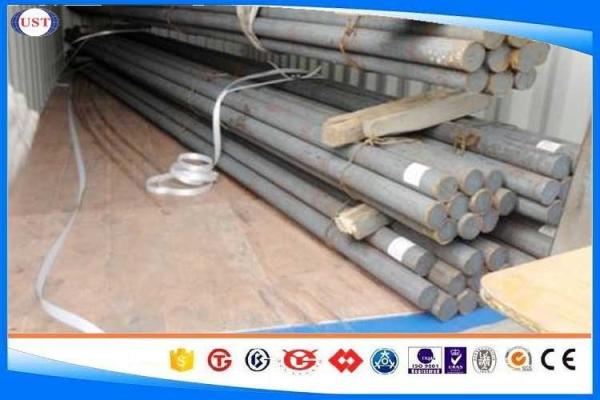

O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ

    Buy cheap O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ from wholesalers

    Buy cheap O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ from wholesalers
    • Buy cheap O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ from wholesalers
    • Buy cheap O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ from wholesalers
    • Buy cheap O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ from wholesalers
    • Buy cheap O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ from wholesalers

    O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ

    Ask Lasest Price
    Brand Name : UST
    Model Number : DIA16-800MM
    Certification : ISO9001
    Price : USD 1500- 2300/ton
    Supply Ability : 1200 ton/month
    Delivery Time : Within 5-35 days
    • Product Details
    • Company Profile

    O1 / BO1 Tool Steel Metal Round Bar , Hot Rolled Steel Round Bar Small MOQ

    O1/BO1 Tool Steel , Small MOQ

    Introduction

    O1 tool steel is a low alloy cold work tool steel that must be oil-quenched in heat treatment. O1 contains small amounts of manganese, tungsten, and chromium, giving O1 adequate toughness for normal tool & die uses. O1 has deep hardening properties with fine grain structure with unusual toughness. O1 has good response to heat treatment with small dimensional changes. Sizes over approximately 2 inches thick or round may exhibit a lower hardness in the interior. O1 tool steel is available in standard de-carb free rounds, flats and squares, as well as the largest size selection in ground flat stock and drill rod of all the tool steel grades.

    Applications

    Where greater dimensional stability in heat treatment or improved wear resistance is required, tool steels with higher alloy contents, such as A2 or D2 should be considered. Typical applications for O1 tool steel are Blanking Dies, Drawing Dies, Extrusion Dies, Form Cutters, Forming Dies, Gauges-Special, Lamination Dies, Master Tools, Molding Dies, Paper Knives, Precision Tools, Punches, Reamers, Roll Threading Dies, Screw Dies, Sub-Press Dies, Taps Trimming Dies, etc.

    Quality Standard

    ASTM A681 – 08 Standard Specification for Tool Steels Alloy.

    HEAT TREATMENT

    FORGING: Heating for forging must be done slowly and uniformly. Soak through at 1800°-1900°F and reheat as often as necessary, stopping work when the temperature drops below 1600°F. After forging, cool slowly in lime, mica, dry ashes or furnace. O-1 should always be annealed after forging.Heavy sizes should be left to cool in vermiculite or in other insulating media.

    ANNEALING: Heat slowly to 1400°-1450°F, hold until entire mass is heated through, and cool slowly in the furnace (40F per hour) to about 1000°F, after which cooling rate may be increased. Suitable precautions must be taken to prevent excessive carburization or decarburization.Protect against surface decarburization using controlled atmosphere or by pack-annealing.

    STRESS RELIEVING: When desirable to relieve the strains of machining, heat slowly to 1050°-1250°F, allow to equalize, and then cool in still air (Strain Relieving).Stress relieve after rough machining.
    PREHEAT PRIOR TO HARDENING: Warm slightly before charging into the preheat furnace, which should be operating at about 1100°-1200°F.Preheat time in furnace is ¾ Hr. per inch of thickness. Heating up to temperature as slow as possible.

    HARDENING: After thorough preheating, transfer to the hardening furnace, operating from 1450°-1500°F, depending on the size of the part.Remove all forging or rolling skin prior to hardening. Temper immediately after hardening. Allow to cool to 125-150° F before tempering.

    QUENCHING: Quench in warm oil and allow to cool in the oil until a temperature of 125°-150°F has been reached, or to where the part can be held in the bare hand, and temper immediately.

    TEMPERING: O1 is generally tempered in the range of 300°-600°F. Complete equalization of temperature throughout the tools is essential for good results. Recommended temperature is 350-500° F.

    Mill′s test certificate

    EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
