Brand Name : | Unite Steel |
Model Number : | Dia : 10-350mm |
Certification : | MTC/SGS/BV/ISO |
Price : | USD500-750 Ton |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 3000 Ton per Month |
Delivery Time : | Within 15-45 days |

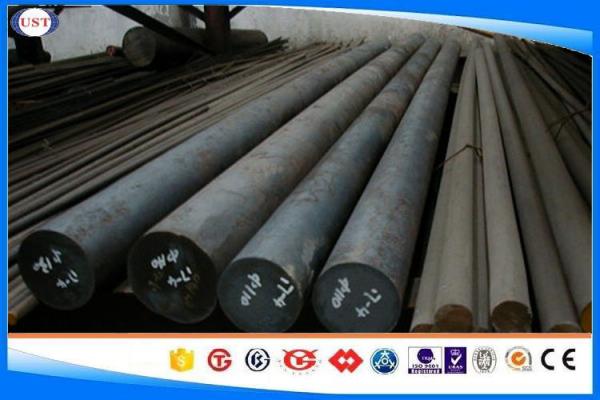

JIS S25c Hot Rolled Steel Bar ,Hot Rolled Carbon Steel , Size 10-350mm ,Structural Steel Round Bar
1. RELATED SPECIFICATIONS:
USA | AISI 1025 |
ASTM A29/A29M-91 25 | |
SAE 1025 | |
Japan | JIS S25C JIS S28C |
Germany | / |
Great Britain | BS970 Part 3:1991 060A/080A25 |
France | XC25 |
2. TYPICAL CHEMICAL ANALYSIS:
Elements | Carbon | Manganese | Silicon | Chromium | Molybdenum | Phosphorus | Sulfur | Cuprum |
JIS S25C | 0.22-0.29 | 0.50-0.80 | 0.17-0.37 | 0.25 max | / | 0.035 max | 0.035 max | 0.25 max |
3. HEAT TREATMENT CONDITION AND MECHANICAL PROPERTIES:
Grade | Sample Size (mm) | Heat Treatment | Mechanical Properties | Hardness(Before Heat Treatment ) | ||||||
Normalizing | Quenching | Tempering | Tensile Strength Mpa | Yield Point Mpa | Elongation % | Reduction of area % | Impact Absorbing Energy J | |||
Celsius Degree | MIN | HB | ||||||||
JIS S25C | 25 | 900 | 870 | 600 | 450 | 275 | 23 | 50 | 71 | 170 |
![]() |
