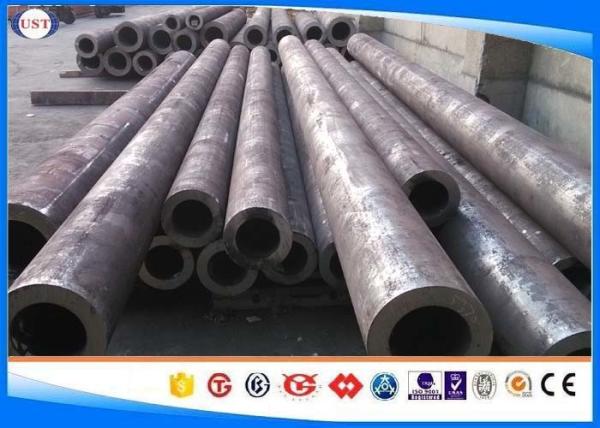

5120/SCr420H/20Cr4/20Cr alloy steel tube Manufacturing automotive
purpose for mechnical
Introduction
| Standard | ASTM A335,ASTM A213,ASTM A106,JIS G3458,JISA3462,DIN17175,GB5310,
GB9948, GB5310 |
| Material | ASTM A335 P2, P12, P11, P22, P5, P9, P91,ASTM A213 T2,
T11,T5,T9,T22,
4140,12CrMo,15CrMo,12Cr2Mo,1Cr5Mo,42CrMo4,1Cr9Mo,10CrMo910,etc. |
| Size | Surface:Black painted,PE coated |
| Length | 6m,5.8m,11.8m,12m, or as required |
| Wall Thickness | 2-150mm |
| Outer Diameter | 25-1100mm |
| Trade terms | Payment terms | T/T,L/C,western union |
| Price terms | FOB,CIF,CFR |
| Package | Standard export seaworthy package or as required. |
| Delivery time | Prompt or as the order quantity. |
| Application | Alloy steel pipe applies to petroleum,chemical industry,electric
power,boiler, high temperature resistant,low temperature
resistant,corrosion resistant seamless steelpipe used.Alloy steel
pipe also can made according to the customer. |
Standards and Related Grades
ASTM A209 T1, ASTM A213 T2,T5,T9,T11,T12,T22,T23,T91,T92 ASTM A335
P1,P2,P5,P9,P11,P22,P23,P91,P92, DIN17175
15Mo3,10CrMo910,13CrMo44,12CrMo195,EN10216-2
16Mo3,10CrMo5-5,13CrMo4-5,10CrMo9-10,25CrMo4,ASTM A519
SAE1010,SAE1020,SAE1026,SAE1045,SAE4130,SAE4140,etc.
Chemical Requirements
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu |
| 5120 | 0.17~0.22 | 0.17~0.37 | 0.70~0.90 | ≤0.035 | ≤0.035 | 0.70~1.00 | ≤0.030 | ≤0.030 |
| SCr420H | 0.17~0.23 | 0.15~0.35 | 0.55~0.90 | ≤0.030 | ≤0.030 | 0.85~1.25 | ≤025 | / |
| 20Cr4 | 0.18~0.24 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | 0.70~1.00 | ≤0.030 | ≤0.030 |
| 20Cr | 0.18~0.24 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | 0.70~1.00 | ≤0.030 | ≤0.030 |
Mechanical Properties
| Steel grade | Tensile strength (Mpa) | Yield strength (Mpa) | Elongation (%) |
| 5120 | ≥835 | ≥540 | ≥10 |
Size Range
Outer Diameter: 25-1100 mm
Wall Thickness: 2-180 mm
Length Random Length, Fixed Length, etc.
Package
In bundle or as your request.
Our Services
Third Party inspection acceptable. such as SGS, BV etc.
Supplying financial support with usance L/C 180 days after B/L
date.
Processing
What we can offer?
-We offer a wide range of steel products in a wide variety of
dimensions and executions, according to the common international
specifications or customize.
-Machining and heat treatment are available.
-Also, we advise you in choosing the right materials.
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
Package
In standard export packing and seaworthy material with hexagon shape bundle, covered with tarpaulin, in containers or in bulk, or
upon request
Payment & Delivery
1. Both T/T and L/C will be acceptable
2. Trade Terms: FOB, CIF, CFR
3. The delivery will be in 10-15 days if have stock; For customized
items, the delivery will be negotiated by both parties
4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples
Company Information
Shanghai Unite Steel Trading Co., Ltd
We are committed to integrate engineering steel resources in china
and serve the global engineering steel market. Our company has more
than 15 years of experience in steel researching, production,
managing and sales. And our team mostly are based on and worked in
national famous steel enterprise.
In the aspect of resources and information, we have established
cooperative and stronger relationship with nearly hundred
enterprises, either state-owned or private owned in china.
What’s more, we have built long, deep and close business
relationship with dozens of steel company, Sharing and holding
equities with several steel enterprises. Because of the close
cooperation with steel companies and our pioneering spirit, which
can ensure us stay at the top competition, and ensure our customers
get what they really want!
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and
trading company. We specialized in special steel which include
alloy structural steel and carbon steel and stainless steel, etc.
All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party,
such as TUV, CE, if you need. Secondly, we have a complete set of
inspection system and every process is checked by QC. Quality is
the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our
warehouse. If the material doesn't have stock, the delivery lead
time is about 5-30 days after receiving your prepayment or firm
order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you
come to China and arrange our driver to our airport to pick you up
when you come.
